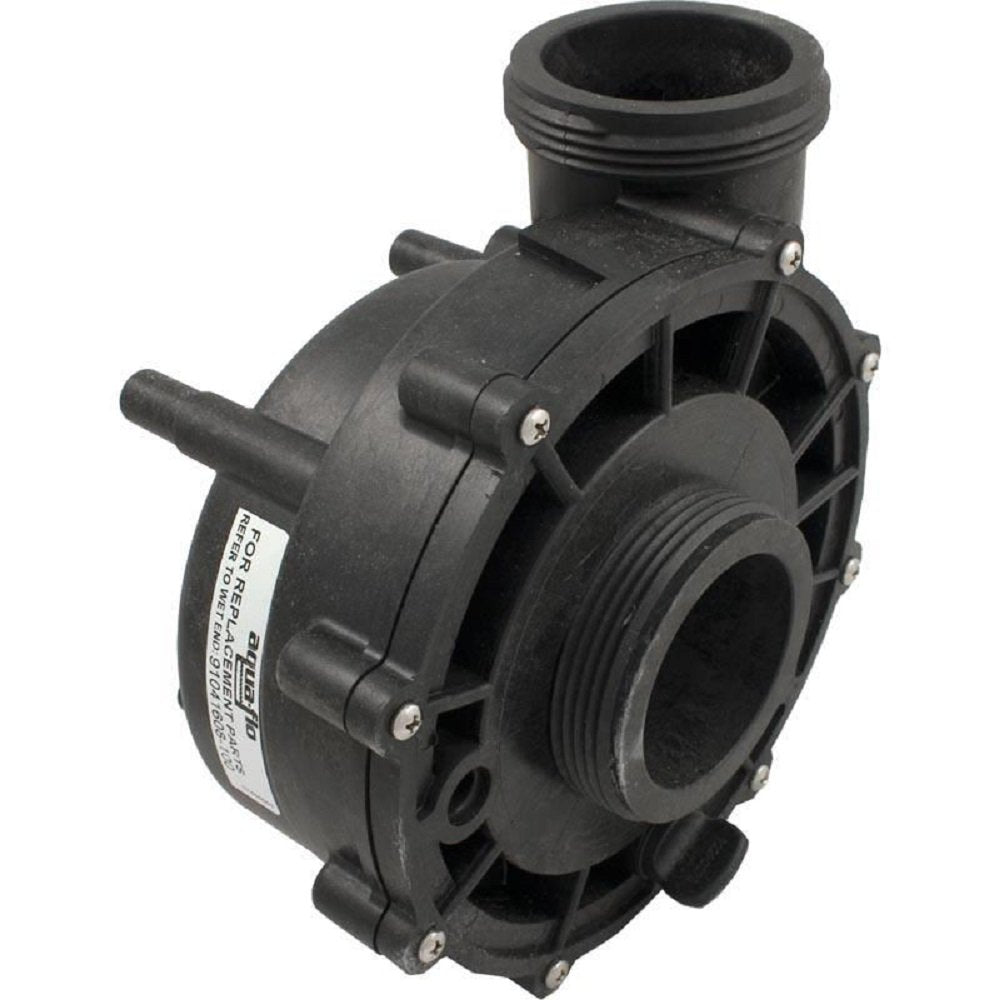

AquaFlo/Gecko Wet End Side discharge, 2"mbt suction/discharge, 48 frame wet end for XP2 pump. This wet end is used with a 1.0hp, 48Y frame, thru-bolt style motor. The motor used may be either a single or dual speed. The wet end may be rotated 90 degrees to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws. Motor and unions sold separately. Specs: Pump to Motor Foot Types - 9 Motor Frame - 48 Frame Thru-Bolt Drain Plug Location - 4,6,9 o`clock Suction Auxillary Port - None Suction Style - Center Suction Connection (Physical Dimension) - 3-1/16"od Suction Connection Type - Male Buttress Thread (mbt) Suction Pipe Size - 2" Discharge Auxilary Port - None Discharge Style - Side Discharge Connection (Physical Dimension) - 3-1/16"od Discharge Connection Type - Male Buttress Thread (mbt) Discharge Pipe Size - 2" Horsepower - 1.0hp Manufacturer - AquaFlo/Gecko Pump Model - Flo-Master XP2 Manufacturer Impeller Number - 91694110 Volute Fastening Type - 8 Screws Volute/Sealplate Number - 92770705
