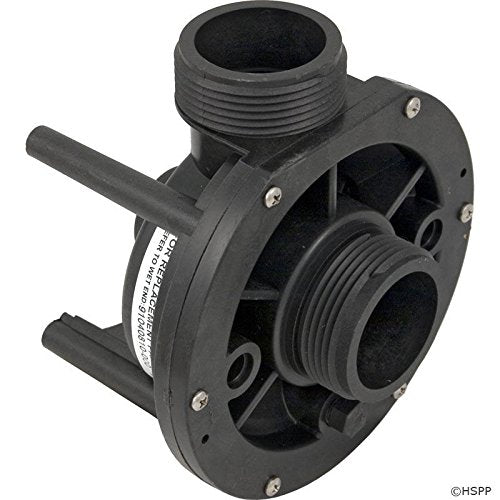

AquaFlo/Gecko Wet End Center discharge, 1-1/2"mbt suction/discharge, 48 frame wet end for FMCP pump. This wet end is used with a 1.0 HP, 48Y frame, thru-bolt style motor. The motor used may be either a single or dual speed. The wet end may be rotated 90 degrees to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws. Motor and unions sold separately. In 2012, the manufacturer changed the way Aquaflo pumps are rated. These pumps are now assigned both an operational horsepower (ohp), and a total horsepower (thp) rating. Previous versions of these pumps used only the operational horsepower. If you are replacing an older Aquaflo pump, be sure to match the operational hp rating rather than the total hp. Specs: Pump to Motor Foot Types - 15 Motor Frame - 48 Frame Thru-Bolt Drain Plug Location - 6 o`clock Suction Auxillary Port - None Suction Style - Center Suction Connection (Physical Dimension) - 2-7/16"od Suction Connection Type - Male Buttress Thread (mbt) Suction Pipe Size - 1-1/2" Discharge Auxilary Port - None Discharge Style - Center Discharge Connection (Physical Dimension) - 2-7/16"od Discharge Connection Type - Male Buttress Thread (mbt) Discharge Pipe Size - 1-1/2" Horsepower - 1.0hp Manufacturer - AquaFlo/Gecko Pump Model - Flo-Master FMCP Manufacturer Impeller Number - 91693601 Volute Fastening Type - 6 Screws Volute/Sealplate Number - 92770603
